Standard Stabilitas Trailer Heavy Cargo

1 0

Industri transportasi kargo berat menghadapi tantangan keselamatan yang signifikan akibat tidak adanya standar stabilitas yang baku untuk trailer pengangkut. Berbeda dengan kapal laut yang terikat aturan IMO dan crane yang memiliki standar 75% tipping limit, trailer heavy lift beroperasi tanpa panduan stabilitas yang universal. Penelitian ini menganalisis kebutuhan akan standardisasi stabilitas trailer berdasarkan data kecelakaan dan studi kasus transportasi kargo berat. Hasil analisis menunjukkan bahwa mayoritas kecelakaan disebabkan oleh human error yang dapat dicegah melalui standardisasi prosedur, training, dan implementasi sistem monitoring. Penelitian ini merekomendasikan pembentukan standar industri yang melibatkan organisasi internasional seperti ESTA dan SC&RA untuk menciptakan panduan stabilitas trailer yang berlaku universal.

Kata Kunci: stabilitas trailer, transportasi kargo berat, keselamatan kerja, heavy lift, tipping angle

1. PENDAHULUAN

1.1 Latar Belakang

Industri transportasi kargo berat (heavy lift transportation) merupakan sektor vital dalam mendukung proyek-proyek infrastruktur, energi, dan industri skala besar. Transportasi komponen seperti transformer, reactor, pressure vessel, dan modul boiler dengan bobot ratusan ton memerlukan perencanaan yang detail dan eksekusi yang presisi untuk menjamin keselamatan.

Banyak perusahaan heavy lift shipping terkemuka telah menunjukkan komitmen tinggi terhadap keselamatan melalui:

• Persiapan dan perencanaan proyek yang detail
• Training dan edukasi staff serta crew
• Inovasi dalam teknologi lifting
• Sertifikasi dan replacement lifting gear dalam interval terencana

Namun demikian, industri ini masih menghadapi tantangan serius berupa tingginya angka kecelakaan pada tahap loading, unloading, dan transportasi kargo. Kecelakaan-kecelakaan ini tidak hanya mengakibatkan kerugian material, tetapi juga berpotensi menyebabkan:

• Injury atau fatality pada pekerja
• Kerusakan lingkungan
• Kerusakan equipment dan kargo
• Delay proyek yang signifikan
• Kerugian finansial yang besar

1.2 Identifikasi Masalah

Perbandingan regulasi keselamatan antar industri menunjukkan disparitas yang mengkhawatirkan:

Ketiadaan standar stabilitas untuk trailer heavy lift menciptakan gap dalam safety management system industri transportasi kargo berat. Setiap operator dan kontraktor menerapkan prosedur internal mereka sendiri tanpa panduan universal yang terstandarisasi.

1.3 Ruang Lingkup

Penelitian ini berfokus pada:

1. Analisis kecelakaan trailer heavy lift yang terjadi akibat masalah stabilitas
2. Identifikasi faktor-faktor yang mempengaruhi stabilitas trailer
3. Evaluasi praktik terbaik (best practices) dalam operasional trailer heavy lift
4. Rekomendasi untuk pengembangan standar stabilitas trailer
5. Kajian sistem suspensi dan metode monitoring stabilitas

Lingkup geografis mencakup praktik internasional dalam industri heavy lift, dengan fokus pada operasi darat (land transportation).

1.4 Tujuan Penelitian

Tujuan umum penelitian ini adalah mengidentifikasi kebutuhan dan merumuskan rekomendasi untuk standar stabilitas trailer dalam industri transportasi kargo berat.

Tujuan khusus:

1. Menganalisis pola dan penyebab kecelakaan trailer heavy lift
2. Mengidentifikasi parameter kritis yang mempengaruhi stabilitas trailer
3. Mengevaluasi efektivitas sistem suspensi 3-point vs 4-point
4. Merumuskan operational guidelines untuk mencegah kecelakaan
5. Mengajukan framework untuk pengembangan standar industri universal

2. TINJAUAN PUSTAKA

2.1 Prinsip Stabilitas pada Kendaraan Berat

Stabilitas kendaraan didefinisikan sebagai kemampuan kendaraan untuk mempertahankan posisi equilibrium ketika menghadapi gaya eksternal. Pada trailer heavy lift, stabilitas ditentukan oleh:

2.1.1 Center of Gravity (CoG)

Center of Gravity adalah titik dimana seluruh bobot objek dapat dianggap terkonsentrasi. Posisi CoG sangat mempengaruhi stabilitas:

• CoG tinggi → stabilitas rendah → risiko tipping tinggi
• CoG rendah → stabilitas tinggi → risiko tipping rendah

2.1.2 Tipping Angle (Sudut Tipping)

Tipping angle adalah sudut maksimal kemiringan sebelum kendaraan kehilangan stabilitas dan terbalik. Perhitungan theoretical tipping angle:

tan(θ) = (Base Width / 2) / Height of CoG

Dimana:

• θ = tipping angle
• Base Width = lebar dasar pijakan (track width)
• Height of CoG = tinggi center of gravity dari ground

2.1.3 Rule of Thumb Stabilitas

Dalam praktik industri, digunakan rule of thumb:

“Jika tinggi kargo ≥ 2× lebar trailer, maka stabilitas menjadi kritis”

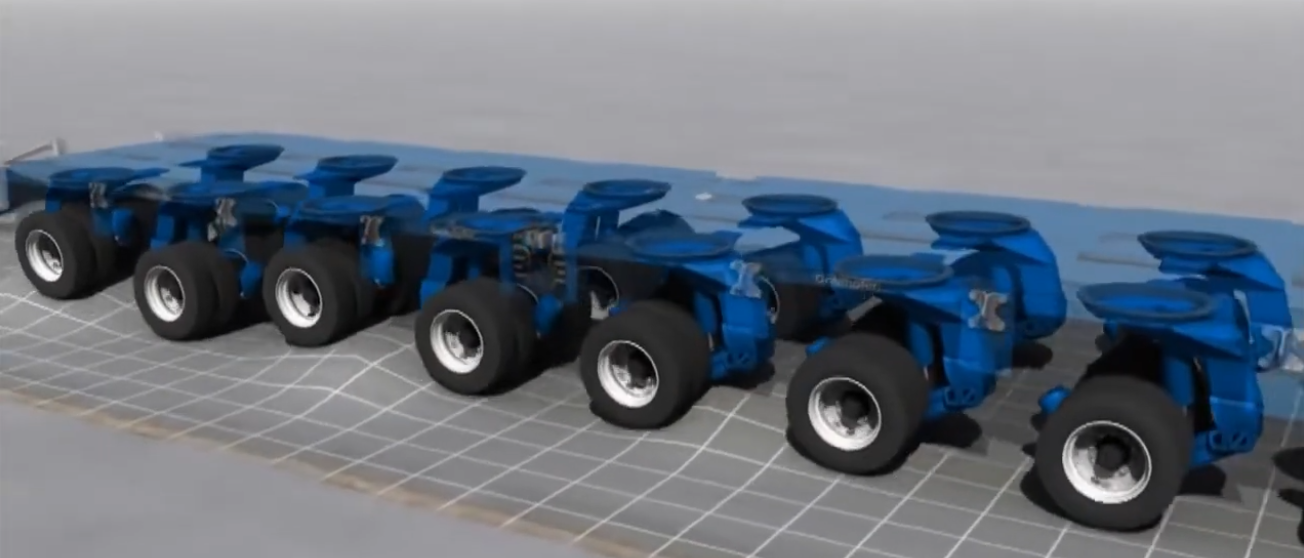

2.2 Sistem Suspensi Trailer

2.2.1 Three-Point Suspension System

Sistem suspensi 3-titik menggunakan tiga titik support:

• Kelebihan:
  • Distribusi beban axle lebih merata
  • Lebih stabil pada permukaan tidak rata
  • Secara geometris lebih stabil (tripod principle)
• Kekurangan:
  • Pada beban sangat tinggi, kapasitas load per point terbatas
  • Positioning single point (depan/belakang) sangat kritis

2.2.2 Four-Point Suspension System

Sistem suspensi 4-titik menggunakan empat titik support:

• Kelebihan:
  • Distribusi beban lebih baik untuk kargo sangat berat
  • Stabilitas teoritis lebih tinggi pada kondisi level
• Kekurangan:
  • Pada permukaan tidak rata, beban tidak terdistribusi merata
  • Memerlukan monitoring dan adjustment konstan
  • Risiko overload pada satu atau dua titik

2.3 Faktor-Faktor yang Mempengaruhi Stabilitas

2.3.1 Faktor Geometri

• Dimensi kargo (panjang, lebar, tinggi)
• Posisi CoG kargo
• Lebar track trailer
• Jumlah dan spacing axle lines

2.3.2 Faktor Operasional

• Road camber (kemiringan jalan)
• Kecepatan operasi
• Radius turning
• Sudden movement (braking, acceleration)

2.3.3 Faktor Mekanis

• Tekanan sistem hidrolik
• Kondisi suspensi
• Tire pressure dan kondisi
• Structural integrity trailer

2.3.4 Faktor Human

• Training dan kompetensi operator
• Kepatuhan terhadap prosedur
• Penggunaan monitoring device (spirit level)
• Decision making saat kondisi kritis

2.4 Standar Keselamatan dalam Industri Terkait

2.4.1 IMO Regulations (Maritime)

International Maritime Organization (IMO) menetapkan standar stabilitas kapal melalui:

• SOLAS Convention
• Intact Stability Code
• Cargo Securing Manual requirements

2.4.2 Crane Stability Standards

Standard crane operations menggunakan safety factor:

• Maximum working load = 75% dari theoretical tipping load
• Safety margin 25% untuk unexpected conditions

2.4.3 Gap dalam Regulasi Trailer

Tidak ada standar internasional yang setara untuk trailer heavy lift, menyebabkan:

• Inkonsistensi praktik operasional
• Variasi safety margin antar operator
• Tidak ada benchmark untuk equipment design

3. METODOLOGI

3.1 Pendekatan Penelitian

Penelitian ini menggunakan pendekatan kualitatif-deskriptif dengan metode:

1. Analisis Kasus (Case Study Analysis) – Investigasi mendalam terhadap kecelakaan aktual
2. Root Cause Analysis – Identifikasi faktor penyebab utama kecelakaan
3. Comparative Analysis – Perbandingan operasi sukses vs operasi gagal
4. Expert Review – Evaluasi oleh praktisi berpengalaman dalam industri heavy lift

3.2 Sumber Data

Data penelitian bersumber dari:

• Dokumentasi kecelakaan trailer heavy lift
• Fotografi dan video incident
• Engineering calculation dan load chart
• Operational procedure dari berbagai operator
• Best practice documentation

3.3 Parameter Analisis

Parameter yang dianalisis dalam setiap kasus:

• Spesifikasi trailer (axle lines, capacity, dimension)
• Karakteristik kargo (weight, dimension, CoG)
• Sistem suspensi yang digunakan
• Kondisi jalan (camber, gradient, surface)
• Operational practice (leveling, monitoring)
• Failure sequence dan contributing factors

4. STUDI KASUS KECELAKAAN

4.1 Kasus 1: Reactor Tipping pada Tikungan

4.1.1 Spesifikasi Operasi

• Kargo: Reactor vessel
• Berat: 203 ton
• Diameter: ± 5.8 meter
• Trailer: Platform trailer 12 axle lines, capacity 300 ton
• Sistem suspensi: 4-point suspension
• Instruksi: Maintain level trailer dengan spirit level, critical stability

4.1.2 Kronologi Kecelakaan

1. Initial Condition:
   • Trailer dalam perjalanan menuju site
   • Operator tidak menggunakan spirit level (tersimpan di cabin tractor)
   • Center axles closed-off karena beban tinggi di ujung trailer
2. Triggering Event:
   • Trailer memasuki tikungan dengan road camber 2.8°
   • Operator tidak aware bahwa trailer sudah tidak level
3. Escalation:
   • Tekanan hidrolik pada satu sisi terlalu tinggi
   • Operator tidak bisa level trailer lagi
   • Trailer mulai tipping secara gradual
   • Lashing putus satu per satu
4. Final Event:
   • Trailer jatuh kembali ke jalan
   • Reactor terguling ke parit samping jalan

4.1.3 Analisis Teknis

Asumsi vs Realita CoG:

• Asumsi awal: CoG berada di centerline reactor
• Realita: CoG lebih ke arah belakang trailer
• Dampak: Rear axle lines terload hingga maximum (25 ton/axle line)

Perhitungan Tipping:

Dengan road camber 2.8° dan CoG offset:

Effective tipping angle = Theoretical tipping angle - Road camber
= θ - 2.8°

Ketika trailer miring karena camber:

• Axle sisi rendah: overloaded
• Axle sisi tinggi: underloaded
• Momen tipping meningkat exponentially

Load Distribution Analysis:

Pada kondisi level:

• Load per axle line ≈ 203 ton / 12 lines = 16.9 ton/line (safe)

Pada kondisi 2.8° tilt:

• Rear axle (low side): ≈ 25 ton/line (maximum capacity)
• Further tilt → overload → accelerated tipping

4.1.4 Root Causes

Immediate Causes:

1. Spirit level tidak digunakan
2. Trailer tidak di-maintain dalam kondisi level
3. Operator tidak monitoring pressure hydraulic dengan seksama

Contributing Factors:

1. CoG kargo tidak sesuai asumsi engineering
2. Road camber tidak diantisipasi dalam planning
3. Training operator tidak memadai untuk critical stability cargo

Underlying Causes:

1. Tidak ada prosedur mandatory untuk penggunaan monitoring device
2. Tidak ada standar pressure differential maksimum yang allowed
3. Tidak ada verification CoG aktual sebelum transport

4.2 Kasus 2: Transformer Tipping

4.2.1 Deskripsi Kecelakaan

Transformer besar terguling dari trailer saat operasi transport. Dari dokumentasi visual terlihat:

• Transformer dalam posisi terbalik di samping trailer
• Trailer masih dalam kondisi upright
• Saddle dan lashing system rusak/putus

4.2.2 Analisis Penyebab

Kecelakaan ini menunjukkan karakteristik:

Mechanical Failure atau Operator Error?

Dari pattern kerusakan, kemungkinan penyebab:

1. Scenario 1 – Lashing Failure:
   • Lashing under-designed atau under-tightened
   • Sudden movement menyebabkan lashing putus
   • Kargo sliding dan tipping
2. Scenario 2 – Saddle Failure:
   • Saddle design tidak adequate
   • Kargo tidak properly secured pada saddle
   • Progressive failure dari saddle connection
3. Scenario 3 – Operational Error:
   • Sudden braking atau turning
   • Trailer tidak level saat starting movement
   • Kombinasi factors

4.2.3 Lessons Learned

1. Securing System Design:
   • Lashing calculation harus include dynamic load factors
   • Saddle design harus verified untuk cargo geometry
   • Redundancy dalam securing system
2. Pre-Transport Checklist:
   • Verification semua securing points
   • Inspection lashing condition
   • Load test sebelum movement

4.3 Kasus 3: Electronic/Hydraulic Failure

4.3.1 Karakteristik Kecelakaan

Kategori kecelakaan yang disebabkan oleh:

• Hydraulic system failure
• Electronic control system malfunction
• Sensor failure

4.3.2 Prevention Measures

Meskipun proporsi lebih kecil dari human error, equipment failure harus dicegah:

1. Preventive Maintenance:
   • Scheduled inspection hydraulic system
   • Testing electronic control systems
   • Replacement parts sebelum end-of-life
2. Fail-Safe Design:
   • Redundant hydraulic circuits
   • Emergency mechanical lock
   • Fail-safe valve positions
3. Monitoring Systems:
   • Pressure sensors dengan alarm
   • Tilt sensors dengan warning system
   • Load cell monitoring per axle line

4.4 Pattern dan Statistik Kecelakaan

4.4.1 Distribusi Penyebab

Dari analisis multiple cases:

• Human Error: 85-90% dari kecelakaan
• Mechanical/Hydraulic Failure: 5-10%
• Electronic Failure: 3-5%
• External Factors (force majeure): <2%

4.4.2 Human Error Breakdown

Kategori human error:

1. Lack of Monitoring: 35%
   • Tidak menggunakan spirit level
   • Tidak monitoring hydraulic pressure
2. Improper Procedure: 30%
   • Tidak follow operational guidelines
   • Skip critical steps dalam checklist
3. Insufficient Training: 20%
   • Tidak understand stability principles
   • Tidak recognize warning signs
4. Complacency: 15%
   • Over-confidence dari pengalaman
   • “Normalized deviance” dari procedures

5. BEST PRACTICES DAN OPERASI SUKSES

5.1 Transport Sphere 260 Ton

5.1.1 Spesifikasi Operasi

• Kargo: Sphere (bola)
• Berat: 260 ton
• Diameter: 16 meter
• Equipment: 12 lines SPMT (Self-Propelled Modular Transporter) coupled side-by-side
• Lokasi: Same corner dimana reactor accident terjadi

5.1.2 Key Success Factors

1. Equipment Selection:
   • SPMT dengan carousel mode capability
   • Turning on the spot (tidak perlu wide radius)
   • Eliminasi lateral force during turning
2. Operational Excellence:
   • Spirit level digunakan kontinyu
   • Trailer maintained level at all times
   • Crew training tentang critical stability
3. Route Planning:
   • Survey detail termasuk road camber
   • Contingency plan untuk critical sections
   • Communication clear antar crew members

5.1.3 Comparison dengan Reactor Accident

5.2 Boiler Module Transport

5.2.1 Karakteristik Operasi

Transport complete boiler module menunjukkan:

• Heavy, complex geometry cargo
• Multiple attachment points
• Successful transport tanpa incident

5.2.2 Success Elements

1. Detailed Engineering:
   • Finite Element Analysis (FEA) untuk stress distribution
   • Load calculation per attachment point
   • Stability calculation dengan worst-case scenarios
2. Equipment Maintenance:
   • Proper maintenance schedule
   • Pre-operation inspection
   • Fail-safe mechanisms in place

5.3 Platform Ringer Crane Transport

5.3.1 Complexity Factors

• Fully rigged platform ringer crane
• Extremely high CoG
• Large wind exposure area

5.3.2 Risk Mitigation

1. Environmental Consideration:
   • Wind speed monitoring
   • Transport hanya pada kondisi weather favorable
   • Weather contingency plan
2. Stability Enhancement:
   • Counterweight optimization
   • Wide track configuration
   • Multiple monitoring points

5.4 Pressure Vessel Transport

5.4.1 Engineering Approach

Transport pressure vessel dengan karakteristik:

• High center of gravity relative to base
• Cylindrical geometry = dynamic stability concern
• Successful execution dengan proper planning

5.4.2 Best Practice Elements

1. Load Securing:
   • Proper saddle design untuk cylindrical shape
   • Multi-point lashing system
   • Anti-rotation devices
2. Transport Execution:
   • Slow, controlled movement
   • No sudden steering atau braking
   • Constant communication dengan spotter

6. PEMBAHASAN

6.1 Analisis Penyebab Kecelakaan

6.1.1 Dominasi Human Error

Data menunjukkan 85-90% kecelakaan disebabkan human error, yang dapat dikategorikan:

Category 1: Knowledge Deficit

• Operator tidak fully understand stability principles
• Lack of awareness tentang critical parameters
• Insufficient theoretical background

Recommendation:

• Structured training program dengan teori stabilitas
• Certification requirement untuk heavy lift operators
• Regular refresher courses

Category 2: Procedural Non-Compliance

• Spirit level tersedia tapi tidak digunakan
• Prosedur ada tapi di-skip
• “Shortcut culture” dalam operasi

Recommendation:

• Mandatory checklist system dengan verification
• Supervision dan spot-check compliance
• Accountability system untuk procedural violation

Category 3: Situation Awareness

• Tidak recognize warning signs
• Tidak anticipate consequences
• Reaction time terlalu lambat ketika problem muncul

Recommendation:

• Simulator training untuk emergency scenarios
• Decision-making training under pressure
• Near-miss reporting dan learning system

6.1.2 Equipment Factor

Meskipun bukan penyebab utama (10-15%), equipment reliability tetap critical:

Hydraulic System:

• Leak → pressure loss → uncontrolled lowering
• Valve failure → stuck position
• Accumulator failure → pressure spike

Electronic Control:

• Sensor malfunction → incorrect reading
• Controller failure → system error
• Wiring issue → intermittent function

Mechanical Components:

• Structural fatigue → failure under load
• Bearing wear → uneven movement
• Connection loosening → separation

6.2 Analisis Sistem Suspensi

6.2.1 Three-Point vs Four-Point Suspension

Three-Point Suspension:

Advantages:

• Geometri triangle = inherently stable
• Equal load distribution lebih mudah achieved
• Less sensitive terhadap uneven ground
• Simpler hydraulic system

Disadvantages:

• Limited capacity per point
• Single point location critical
• Potential overload pada high tonnage

Optimal Application:

• Standard cargo up to moderate weight
• High stability priority
• Operation pada terrain tidak rata

Four-Point Suspension:

Advantages:

• Better load distribution untuk very heavy cargo
• Lower pressure per point
• Theoretical higher stability (wider base)

Disadvantages:

• Sangat sensitive terhadap leveling
• Requires constant monitoring
• Risk of diagonal loading (2 points overload)
• Complex hydraulic pressure management

Optimal Application:

• Very heavy cargo (>200 ton)
• Level, good quality road
• Dengan proper monitoring system

6.2.2 Single Point Position dalam 3-Point System

Front Single Point Configuration:

• Early warning ketika front axle turun
• Opportunity untuk correction sebelum tipping
• Recommended untuk majority of operations

Rear Single Point Configuration:

• Sudden tipping tanpa warning (as seen in reactor case)
• Tractor pulling force memperburuk tipping
• Not recommended untuk critical stability cargo

6.3 Critical Parameters untuk Monitoring

6.3.1 Leveling Status

Importance:

• Primary indicator of stability condition
• Early warning of potential tipping
• Actionable parameter (can be corrected immediately)

Monitoring Methods:

• Spirit level: Simple, reliable, no power required
• Electronic inclinometer: Real-time data, alarm capability
• Visual reference: Least reliable, untuk backup only

Operational Standard: Trailer harus maintained dalam toleransi:

• Normal cargo: ±1.5° maximum deviation
• Critical stability cargo: ±0.5° maximum deviation
• Corrective action: Immediate stop dan leveling jika exceeded

6.3.2 Hydraulic Pressure

Monitoring Purpose:

• Detect load distribution
• Identify potential CoG shift
• Early warning of system failure

Critical Thresholds:

• Maximum pressure per point: 80% of system maximum
• Pressure differential antar points: <15% untuk 4-point, <10% untuk adjacent points di 3-point
• Sudden pressure drop: >10% in 1 minute = potential leak

6.3.3 Environmental Conditions

Road Camber:

• Typical range: 1.5° – 3.5°
• Critical when combined dengan high CoG cargo
• Harus included dalam route survey

Wind Load:

• Significant untuk high, large surface area cargo
• Rule of thumb: Wind speed >15 m/s = increased risk untuk high CoG cargo
• Worst case: crosswind pada tikungan

6.4 Framework untuk Standar Stabilitas Trailer

6.4.1 Theoretical Tipping Angle Standard

Proposal: Minimum theoretical tipping angle harus dihitung dan documented untuk setiap cargo configuration:

θ_min = arctan[(Track Width/2) / CoG Height]

Safety Margin:

• Operational limit = 70% dari theoretical tipping angle
• Similar dengan crane standard (75% tipping load)
• Margin 30% untuk environmental dan dynamic factors

Example Calculation:

• Track width: 3.0 m
• CoG height: 4.0 m
• Theoretical θ = arctan(1.5/4.0) = 20.6°
• Operational limit = 0.70 × 20.6° = 14.4°
• Max allowed deviation: 14.4°

6.4.2 Hydraulic Pressure Standard

Proposed Limits:

1. Maximum Pressure per Point:
   • 75% of system maximum pressure
   • Ensures margin untuk adjustment
   • Prevents overload failure
2. Differential Pressure:
   • Four-point system: <15% differential between highest dan lowest
   • Three-point system: <10% differential between side points
   • Exceeding limit = mandatory stop dan adjustment
3. Pressure Rate of Change:
   • Maximum 5% per minute during transport
   • Rapid change indicates problem (leak, shift, failure)
   • Auto-alert system required

6.4.3 Operational Guidelines Standard

Mandatory Requirements:

1. Pre-Transport:
   • Stability calculation documented
   • CoG verification (weighing atau calculation)
   • Route survey including camber, gradient, surface quality
   • Risk assessment dan mitigation plan
   • Crew briefing dengan emphasis pada critical points
2. During Transport:
   • Continuous monitoring of level (spirit level atau electronic)
   • Periodic check of hydraulic pressure (minimum every 15 minutes)
   • Speed limit based pada cargo stability class
   • No sudden movement (braking, acceleration, steering)
   • Communication protocol antar crew members
3. Emergency Procedures:
   • Stop criteria clearly defined
   • Emergency leveling procedure
   • Emergency contact numbers
   • Evacuation procedure untuk crew

6.4.4 Equipment Standard

Mandatory Equipment:

1. Monitoring Devices:
   • Spirit level (minimum) atau electronic inclinometer (preferred)
   • Pressure gauges per hydraulic point
   • Load indicator per axle line (untuk high value cargo)
2. Safety Devices:
   • Emergency hydraulic power source
   • Mechanical lock backup
   • Fail-safe valve systems
3. Communication:
   • Two-way radio antar tractor, trailer operator, dan spotter
   • Mobile phone dengan emergency numbers
   • Alarm system untuk critical parameter exceeding

6.5 Training dan Competency Standard

6.5.1 Tiered Training System

Level 1 – Basic Operator:

• Understanding basic stability principles
• Spirit level usage
• Procedure compliance
• Emergency response

Level 2 – Advanced Operator:

• Stability calculation
• Hydraulic system troubleshooting
• Risk assessment
• Critical cargo handling

Level 3 – Transport Supervisor:

• Engineering review
• Route planning dan risk assessment
• Crew briefing dan supervision
• Incident investigation

6.5.2 Certification Requirement

Proposal:

• Certification valid 3 tahun dengan annual refresher
• Practical test termasuk simulator scenarios
• Written test untuk theoretical knowledge
• Near-miss dan accident analysis sebagai case studies

6.5.3 Continuous Improvement

• Incident reporting system (anonymous option available)
• Lessons learned database
• Best practice sharing antar companies
• Industry forum untuk discussion

6.6 Feasibility dan Implementation

6.6.1 Stakeholder Analysis

Industry Leaders:

• Companies seperti ALE, Fagioli, Mammoet, Sarens
• Direct benefit: reduced accidents = lower cost, better reputation
• Concern: standardization mungkin increase operational cost short-term

Equipment Manufacturers:

• Scheuerle, Goldhofer, Nicolas
• Opportunity: develop advanced monitoring systems
• Concern: retrofit requirement untuk existing fleet

Industry Organizations:

• ESTA (European Heavy Transport Association)
• SC&RA (Specialized Carriers & Rigging Association)
• Role: facilitate standardization process
• Challenge: harmonization across regions

Regulatory Bodies:

• Department of Transportation (various countries)
• Occupational Safety agencies
• Role: enforce standards
• Challenge: technical expertise dalam niche industry

6.6.2 Implementation Roadmap

Phase 1 (Year 1): Foundation

• Establish Joint Industry Working Group
• Literature review dan data collection
• Draft preliminary standards
• Pilot testing dengan volunteer companies

Phase 2 (Year 2): Development

• Refine standards based pada pilot feedback
• Develop training curriculum dan materials
• Create certification process
• Engage dengan regulatory bodies

Phase 3 (Year 3): Rollout

• Official standard publication
• Begin certification programs
• Equipment manufacturers develop compliant systems
• Phased implementation timeline

Phase 4 (Year 4-5): Full Implementation

• Mandatory compliance untuk new operations
• Retrofit atau phase-out non-compliant equipment
• Monitoring dan enforcement
• Continuous improvement cycle

6.6.3 Cost-Benefit Analysis

Costs:

• Training program development dan delivery: Moderate
• Monitoring equipment upgrade: Significant
• Operational time increase (untuk compliance): Low-Moderate
• Certification administration: Low

Benefits:

• Accident reduction: High (estimated 60-80% reduction dalam stability-related accidents)
• Insurance premium reduction: Moderate
• Reputation improvement: High
• Regulatory compliance: High (avoiding potential future mandatory regulations)
• Industry standardization: Efficiency gain long-term

ROI Timeline: Estimated break-even dalam 3-5 tahun through:

• Reduced accident costs
• Lower insurance premiums
• Improved operational efficiency
• Reduced project delays

6.7 Comparison dengan Industri Lain

6.7.1 Maritime Industry (IMO Standards)

Applicable Lessons:

• Stability booklet concept → dapat diadaptasi untuk “Trailer Stability Manual”
• Metacentric height concept → equivalent theoretical tipping angle
• Loading computer → equivalent pressure monitoring system
• Inclinometer requirement → directly applicable
• Master’s responsibility → Transport supervisor responsibility

6.7.2 Crane Industry (75% Rule)

Applicable Principles:

• Safety factor 25-30% proven effective
• Load chart system → can be adapted untuk stability chart
• Operator certification → directly applicable
• Annual inspection requirement → applicable untuk trailer systems

6.7.3 Aviation Industry (Safety Management System)

Transferable Concepts:

• Just Culture principle: report tanpa blame untuk learning
• Near-miss reporting system: valuable untuk prevention
• Checklist culture: proven mengurangi human error
• Simulator training: applicable untuk emergency scenarios

7. KESIMPULAN

7.1 Kesimpulan Utama

1. Urgensi Standardisasi
   • Ketiadaan standar stabilitas untuk trailer heavy lift merupakan gap signifikan dalam safety management system industri transportasi kargo berat
   • Berbeda dengan shipping (IMO) dan crane operations (75% tipping rule), trailer heavy lift beroperasi tanpa panduan universal yang terstandarisasi
   • Tingginya angka kecelakaan (85-90% disebabkan human error) menunjukkan perlunya framework yang jelas dan terstruktur
2. Pola Kecelakaan dan Root Causes
   • Mayoritas kecelakaan disebabkan oleh kombinasi factors: lack of monitoring, procedural non-compliance, dan insufficient training
   • Critical failure point: tidak menggunakan spirit level atau monitoring device yang tersedia
   • Secondary factors: incorrect CoG assumption, road camber tidak diantisipasi, pressure differential tidak dimonitor
   • Equipment failure hanya berkontribusi 10-15%, menunjukkan bahwa solusi utama adalah human factor improvement
3. Sistem Suspensi dan Operational Practice
   • Three-point suspension lebih reliable untuk standard operations karena inherent stability dan equal load distribution
   • Four-point suspension diperlukan untuk extremely heavy cargo (>200 ton) tetapi requires intensive monitoring
   • Single point position dalam 3-point system: front position memberikan early warning, rear position sangat berisiko
   • Critical stability cargo (height ≥ 2× trailer width) memerlukan enhanced monitoring dan procedures
4. Feasibility Standardisasi
   • Implementasi standar stabilitas trailer adalah feasible dan cost-effective
   • Estimated ROI dalam 3-5 tahun melalui accident reduction dan operational efficiency
   • Requires collaboration antara industry leaders, equipment manufacturers, dan trade organizations
   • Phased implementation (5 years) allows gradual adaptation dan minimizes disruption
5. Framework Standard yang Direkomendasikan
   • Theoretical tipping angle dengan safety margin 30% (operational limit 70% dari theoretical)
   • Hydraulic pressure limits: maximum 75% per point, differential <15% untuk 4-point system
   • Mandatory monitoring: continuous leveling check, periodic pressure monitoring
   • Tiered training dan certification system untuk operators

7.2 Kontribusi Penelitian

Penelitian ini memberikan kontribusi kepada industri heavy lift transportation dalam bentuk:

1. Akademis:
   • Comprehensive analysis pola kecelakaan trailer stability
   • Framework teoritis untuk standardisasi berdasarkan established practices dari industri lain
   • Documentation best practices dan lessons learned
2. Praktis:
   • Actionable recommendations untuk immediate implementation
   • Operational guidelines yang dapat diadopsi oleh operators
   • Risk assessment framework untuk transport planning
3. Industrial:
   • Roadmap untuk pengembangan industry-wide standards
   • Platform untuk collaboration antar stakeholders
   • Justification untuk investment dalam training dan monitoring equipment

7.3 Keterbatasan Penelitian

1. Data Limitations:
   • Accident data bersumber dari publicly available information dan may not represent complete picture
   • Proprietary operational data dari companies tidak fully accessible
   • Near-miss incidents often underreported
2. Scope Limitations:
   • Focus pada stability issues, tidak comprehensive coverage semua heavy lift risks
   • Geographic scope terbatas pada international best practices, local variations mungkin exist
   • Equipment types covered tidak exhaustive (focus pada platform trailers dan SPMT)
3. Methodology Limitations:
   • Qualitative approach, tidak extensive quantitative statistical analysis
   • Case studies limited number, though representative
   • Cost-benefit analysis based pada estimates, bukan actual industry-wide data

7.4 Rekomendasi Implementasi

7.4.1 Short-Term Actions (0-12 months)

Untuk Operators:

1. Immediate adoption of monitoring practices:
   • Mandatory spirit level usage untuk all critical stability cargo
   • Hydraulic pressure logging every 15 minutes
   • Pre-transport stability briefing untuk crew
2. Training enhancement:
   • Internal training program tentang stability principles
   • Case study review dari accidents
   • Emergency response drills
3. Procedural improvement:
   • Update operational procedures dengan emphasis pada monitoring
   • Implement mandatory checklist system
   • Create clear stop criteria dan corrective action procedures

Untuk Equipment Manufacturers:

1. Develop enhanced monitoring systems:
   • Integrated electronic inclinometer dengan alarm
   • Automatic pressure monitoring dengan data logging
   • Visual/audio alert untuk critical parameters
2. Retrofit solutions:
   • Cost-effective monitoring packages untuk existing fleet
   • Modular systems yang dapat installed tanpa major modifications

Untuk Industry Organizations:

1. Establish working group:
   • Representatives dari major operators
   • Equipment manufacturers
   • Technical experts dan academics
   • Regulatory liaison
2. Information sharing:
   • Create database of best practices
   • Anonymous incident reporting platform
   • Regular industry safety bulletins

7.4.2 Medium-Term Actions (1-3 years)

Standard Development:

1. Draft comprehensive standard document covering:
   • Stability calculation methods
   • Equipment requirements
   • Operational procedures
   • Training and certification
   • Inspection and maintenance
2. Pilot program:
   • Volunteer companies implement draft standard
   • Collect feedback dan performance data
   • Refine standard based pada real-world experience
3. Training infrastructure:
   • Develop standardized curriculum
   • Establish certification bodies
   • Create training materials (manuals, videos, simulators)

Regulatory Engagement:

1. Present standard proposal kepada relevant authorities
2. Demonstrate safety benefits melalui pilot data
3. Seek endorsement atau adoption sebagai best practice guideline

7.4.3 Long-Term Actions (3-5 years)

Full Implementation:

1. Mandatory compliance untuk new equipment dan operations
2. Phase-out atau retrofit non-compliant equipment
3. Regular audits dan enforcement
4. Continuous improvement process

International Harmonization:

1. Alignment dengan regional standards (EU, US, Asia)
2. Mutual recognition of certifications
3. International best practice exchange

Technology Integration: 4. Advanced monitoring systems (IoT, real-time data) 5. Predictive analytics untuk risk assessment 6. Automation features untuk stability control

7.5 Saran untuk Penelitian Lanjutan

1. Quantitative Studies:
   • Statistical analysis of large accident database
   • Correlation studies antara various factors dan accident rate
   • Cost-benefit quantification dengan actual industry data
2. Technology Development:
   • Automated stability control systems
   • AI-based risk prediction models
   • Virtual reality simulator untuk training
3. Human Factors Research:
   • Cognitive load studies pada operators
   • Decision-making under pressure analysis
   • Fatigue impact pada situation awareness
4. Comparative International Studies:
   • Practices comparison across different regions
   • Regulatory landscape analysis
   • Cultural factors dalam safety compliance
5. Specific Equipment Studies:
   • SPMT vs conventional trailer comparative analysis
   • Modular trailer configurations optimization
   • Specialized equipment untuk specific cargo types
6. Long-term Impact Studies:
   • Post-implementation evaluation of standards
   • Industry-wide safety metrics trends
   • Economic impact assessment

8. REFERENSI

8.1 Dokumen Primer

1. Krabbendam, R.L. (n.d.). “Guidelines on Trailer Stability – Rules Needed or Not?” Presentation by Heavy Lift Specialist, Jumbo Shipping. [Presentation document]

8.2 Standar dan Regulasi

2. International Maritime Organization (IMO). (2008). “International Code on Intact Stability, 2008 (2008 IS Code).” London: IMO.
3. International Maritime Organization (IMO). “SOLAS Convention – International Convention for the Safety of Life at Sea.” London: IMO.
4. ASME B30.5. “Mobile and Locomotive Cranes – Safety Standard for Cableway, Cranes, Derricks, Hoists, Hooks, Jacks, and Slings.” American Society of Mechanical Engineers.

8.3 Literature Industri

5. European Association of Abnormal Road Transport and Mobile Cranes (ESTA). “Best Practice Guidelines for Heavy Transport Operations.”
6. Specialized Carriers & Rigging Association (SC&RA). “Best Practices for Heavy Lift Operations.”
7. Mammoet. “Safety in Heavy Lift and Transport – Company Guidelines.”
8. ALE Heavylift. “Engineering Excellence in Heavy Transport.”

8.4 Literatur Teknis

9. Gillespie, T.D. (1992). “Fundamentals of Vehicle Dynamics.” Society of Automotive Engineers (SAE).
10. Wong, J.Y. (2001). “Theory of Ground Vehicles.” John Wiley & Sons.
11. Crolla, D.A. & Cao, D. (2012). “Vehicle Dynamics: Theory and Application.” John Wiley & Sons.

8.5 Studi Keselamatan

12. Heinrich, H.W. (1931). “Industrial Accident Prevention: A Scientific Approach.” McGraw-Hill. [Classic work on accident causation]
13. Reason, J. (1990). “Human Error.” Cambridge University Press.
14. Dekker, S. (2006). “The Field Guide to Understanding Human Error.” Ashgate Publishing.

8.6 Best Practices dan Case Studies

15. Scheuerle Fahrzeugfabrik. “Technical Manual for Self-Propelled Modular Transporters (SPMT).”
16. Goldhofer AG. “Heavy Duty Module Carriers – Operating Instructions and Safety Guidelines.”
17. Nicolas Industrie. “Technical Documentation for Heavy Transport Trailers.”

8.7 Safety Management Systems

18. International Labour Organization (ILO). “Guidelines on Occupational Safety and Health Management Systems (ILO-OSH 2001).”
19. ICAO. “Safety Management Manual (SMM).” International Civil Aviation Organization. [For comparison of safety systems]

8.8 Web Resources

20. Heavy Lift Specialist. www.heavyliftspecialist.com [Industry resources and training materials]
21. International Heavy Lift Association. www.ihla.org [Industry news and standards development]
22. OSHA Heavy Equipment Safety. www.osha.gov [Regulatory guidance United States]

LAMPIRAN

Lampiran A: Glossary of Terms

Axle Line – Satu set axles yang parallel, typically consisting of 2-4 individual axles

Camber – Kemiringan melintang jalan (crossfall) untuk drainage, typically 1.5-3.5°

Center of Gravity (CoG) – Titik dimana seluruh massa objek dapat dianggap terkonsentrasi

Critical Stability Cargo – Cargo dengan height ≥ 2× trailer width, requiring enhanced monitoring

Lashing – Securing system menggunakan chains, straps, atau wire ropes untuk prevent cargo movement

Platform Trailer – Multi-axle trailer dengan flat deck, used for heavy and oversized cargo

Saddle – Support structure pada trailer yang conform to cargo shape (curved untuk cylindrical cargo)

Self-Propelled Modular Transporter (SPMT) – Specialized heavy transport vehicle dengan multiple axles dan individual hydraulic suspension per axle

Spirit Level – Manual leveling device using bubble dalam fluid untuk indicate horizontal plane

Theoretical Tipping Angle – Maximum angle at which vehicle remains stable, calculated dari geometry

Three-Point Suspension – Suspension system dengan tiga support points forming triangular support

Track Width – Jarak antara center of left wheels dan center of right wheels

Lampiran B: Perhitungan Stabilitas – Contoh

Scenario: Transport reactor vessel

Given:

• Cargo weight: 200 ton
• Cargo height (CoG dari ground): 4.5 m
• Trailer track width: 3.2 m
• Road camber: 2.5°

Calculation:

1. Theoretical Tipping Angle:

tan(θ) = (Track Width / 2) / CoG Height
tan(θ) = (3.2 / 2) / 4.5
tan(θ) = 1.6 / 4.5 = 0.356
θ = arctan(0.356) = 19.6°

2. Operational Limit (70% safety margin):

θ_operational = 0.70 × 19.6° = 13.7°

3. Effective Tipping Angle dengan Road Camber:

θ_effective = θ_theoretical - Road Camber
θ_effective = 19.6° - 2.5° = 17.1°

4. Safety Margin dengan Camber:

Actual margin = (θ_effective - θ_operational) / θ_effective
Actual margin = (17.1° - 13.7°) / 17.1° = 19.9%

Interpretation:

• Dengan road camber 2.5°, safety margin reduced dari 30% menjadi ~20%
• Still acceptable, but requires careful monitoring
• Any additional tilt (>2.5°) akan further reduce margin
• Corrective action required jika trailer tilt exceeds 2.5° dari level

Lampiran C: Checklist Template – Pre-Transport

CRITICAL STABILITY CARGO – PRE-TRANSPORT CHECKLIST

Project: _________________ Date: _____________ Cargo Description: _________________ Weight: _______ ton

□ ENGINEERING REVIEW

• [ ] Stability calculation completed dan documented
• [ ] CoG verified (weighing atau engineering calculation)
• [ ] Theoretical tipping angle calculated: ____°
• [ ] Operational limit determined: ____°
• [ ] Risk assessment completed

□ ROUTE SURVEY

• [ ] Route inspected untuk road camber (max observed: ____°)
• [ ] Gradient checked (max: ____%)
• [ ] Road surface quality documented
• [ ] Critical sections identified dan marked pada route map
• [ ] Alternative route evaluated (if needed)

□ EQUIPMENT PREPARATION

• [ ] Trailer inspection completed (valid certificate)
• [ ] Hydraulic system tested dan pressure checked
• [ ] Spirit level available dan calibrated
• [ ] Pressure gauges functional di semua points
• [ ] Communication devices tested (radio, phone)
• [ ] Lashing dan securing equipment inspected

□ SUSPENSION CONFIGURATION

• [ ] Suspension system selected: □ 3-point □ 4-point
• [ ] If 3-point: Single point location: □ Front □ Rear
• [ ] Suspension points load calculated dan within limits
• [ ] Hydraulic pressure settings determined

□ PERSONNEL

• [ ] Operators certified dan trained
• [ ] Crew briefing completed
• [ ] Roles dan responsibilities assigned:
  • Tractor driver: ______________
  • Trailer operator: ______________
  • Spotter(s): ______________
  • Supervisor: ______________
• [ ] Emergency procedures reviewed
• [ ] Communication protocol established

□ DOCUMENTATION

• [ ] Transport permit obtained
• [ ] Insurance valid
• [ ] Safety plan approved
• [ ] Emergency contact numbers available
• [ ] Load chart dan stability data onboard

APPROVAL

Transport Supervisor: _________________ Date: _______ Safety Officer: _________________ Date: _______

NOTES / SPECIAL INSTRUCTIONS:

Lampiran D: Monitoring Log Template

TRANSPORT MONITORING LOG

Date: ________ Project: ________________ Cargo: ________________ Route: From _______ To _______

Critical Events:

• Stop events: _______________________
• Corrective actions: _______________________
• Near-miss: _______________________

Completion:

• Arrival time: _______
• Final condition check: □ OK □ Issue: __________
• Supervisor sign-off: ________________

PENUTUP

Penelitian ini menggarisbawahi urgensi untuk mengembangkan dan mengimplementasikan standar stabilitas yang komprehensif untuk trailer heavy lift. Dengan tingginya angka kecelakaan yang sebagian besar disebabkan oleh human error, standardisasi merupakan langkah krusial untuk meningkatkan keselamatan industri transportasi kargo berat.

Framework yang diusulkan dalam penelitian ini memberikan foundation untuk pengembangan standar yang practical dan implementable. Kolaborasi antara industry leaders, equipment manufacturers, trade organizations, dan regulatory bodies adalah kunci untuk kesuksesan implementasi.

Keselamatan tidak hanya tentang compliance terhadap regulations, tetapi juga tentang membangun culture of safety dimana setiap individual dalam organisasi memahami responsibilities mereka dan committed untuk operational excellence.

“Safety is not a priority, it is a value. Priorities can change, but values remain constant.”

Dengan implementing rekomendasi dalam penelitian ini, industri heavy lift transportation dapat significant menurunkan accident rates, protect lives, preserve environment, dan ensure successful project execution.

KATA PENGANTAR PENULIS

Jurnal ini disusun berdasarkan presentasi komprehensif dari Richard L. Krabbendam, Heavy Lift Specialist dari Jumbo Shipping, yang telah di-dedicated untuk meningkatkan safety standards dalam industri heavy lift transportation.

Tujuan utama jurnal ini adalah untuk menyediakan scientific foundation dan practical guidance untuk pengembangan standar stabilitas trailer yang saat ini masih absent dalam industri. Dengan menganalisis actual accidents, best practices, dan lessons learned, diharapkan jurnal ini dapat menjadi catalyst untuk positive change dalam industri.

Kepada semua professionals dalam heavy lift industry – operators, engineers, supervisors, managers – mari kita collectively work together untuk membuat industri ini safer untuk everyone. Setiap accident yang dicegah adalah life yang diselamatkan, project yang sukses, dan reputation yang dijaga.

“Let us stop these accidents, as all of these can be prevented.”

INFORMASI KONTAK UNTUK FEEDBACK

Feedback dan suggestions untuk improvement jurnal ini sangat appreciated. Industry collaboration adalah key untuk developing effective standards.

Dokumen ini untuk educational dan safety purposes dengan proper attribution.

Reference: Based on “Guidelines on Trailer Stability” presentation by Richard L. Krabbendam, Heavy Lift Specialist, www.heavyliftspecialist.com

About Post Author

Muh. Burhanuddin

Industrial Engineer, Specialist in Heavy Cargo Transportation and Heavy Lifting Works. Hobby in computer programming, reading and writing. No occupation except waiting for a prayer time. Ready for working as a surveyor, transport planer, or as lifting engineer.

https://www.alvinburhani.net

Happy

0 0 %

Sad

0 0 %

Excited

0 0 %

Sleepy

0 0 %

Angry

0 0 %

Surprise

0 0 %

About The Author

Muh. Burhanuddin

Industrial Engineer, Specialist in Heavy Cargo Transportation and Heavy Lifting Works. Hobby in computer programming, reading and writing. No occupation except waiting for a prayer time. Ready for working as a surveyor, transport planer, or as lifting engineer.

See author's posts
